This class is used for output data to VTK file format. More...

#include <output_msh.hh>

Inheritance diagram for OutputMSH:

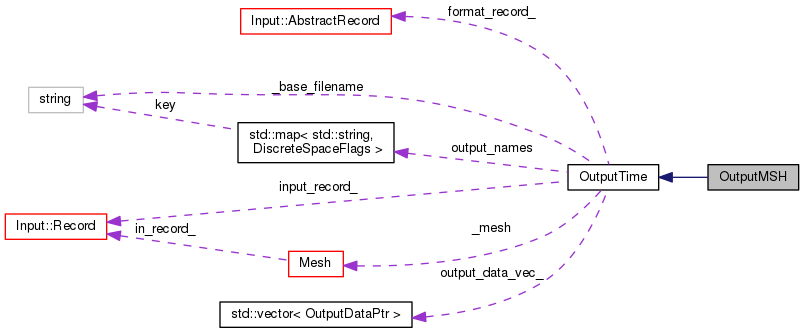

Collaboration diagram for OutputMSH:

[legend]

Public Types
typedef OutputTime	FactoryBaseType

Public Types inherited from OutputTime
enum	DiscreteSpace { NODE_DATA = 0, CORNER_DATA = 1, ELEM_DATA = 2 }

Public Member Functions
	OutputMSH ()
	The constructor of this class. More...

	OutputMSH (const Input::Record &in_rec)
	The constructor of this class. More...

	~OutputMSH ()
	The destructor of this class. More...

int	write_head (void)
	This method writes head of GMSH (.msh) file format. More...

int	write_data (void)
	This method writes data to GMSH (.msh) file format for current time. More...

int	write_tail (void)
	This method should write tail of GMSH (.msh) file format. More...

Public Member Functions inherited from OutputTime
	OutputTime ()
	Default constructor. Only for testing. More...

	OutputTime (const Input::Record &in_rec)
	Constructor of OutputTime object. It opens base file for writing. More...

virtual	~OutputTime ()
	Destructor of OutputTime. It doesn't do anything, because all necessary destructors will be called in destructor of Output. More...

template<int spacedim, class Value >
void	register_data (const DiscreteSpace type, MultiField< spacedim, Value > &multi_field)
	Generic method for registering output data stored in MultiField. More...

template<int spacedim, class Value >
void	register_data (const DiscreteSpace ref_type, Field< spacedim, Value > &field)
	Generic method for registering of output data stored in Field. More...

void	write_time_frame ()

void	add_admissible_field_names (const Input::Array &in_array)
	Registers names of output fields that can be written using this stream. More...

void	clear_data (void)
	Clear data for output computed by method `compute_field_data`. More...

void	mark_output_times (const TimeGovernor &tg)

	TYPEDEF_ERR_INFO (EI_FieldName, std::string)

	DECLARE_EXCEPTION (ExcOutputVariableVector,<< "Can not output field "<< EI_FieldName::qval<< " returning variable size vectors. Try convert to MultiField.\n")

Static Public Member Functions
static const Input::Type::Record &	get_input_type ()
	The definition of input record for gmsh file format. More...

Static Public Member Functions inherited from OutputTime
static const Input::Type::Record &	get_input_type ()
	The specification of output stream. More...

static Input::Type::Abstract &	get_input_format_type ()
	The specification of output file format. More...

static std::shared_ptr< OutputTime >	create_output_stream (const Input::Record &in_rec)
	This method delete all object instances of class OutputTime stored in output_streams vector. More...

Private Member Functions
void	write_msh_header (void)
	This function write header of GMSH (.msh) file format. More...

void	write_msh_geometry (void)
	This function writes geometry (position of nodes) to GMSH (.msh) file format. More...

void	write_msh_topology (void)
	This function writes topology (connection of nodes) to the GMSH (.msh) file format. More...

template<class element >
void	write_msh_ascii_cont_data (flow::VectorId< element > &vec, OutputDataPtr output_data)
	This function writes continuous ascii data to GMSH (.msh) output file. More...

void	write_msh_ascii_discont_data (OutputDataPtr output_data)
	This function writes discontinuous ascii data to GMSH (.msh) output file. More...

void	write_msh_node_data (double time, int step)
	This function write all data on nodes to output file. This function is used for static and dynamic data. More...

void	write_msh_elem_data (double time, int step)
	This function write all data on elements to output file. This function is used for static and dynamic data. More...

void	fix_base_file_name (void)
	This method add right suffix to .msh GMSH file. More...

Private Attributes
bool	header_written

Static Private Attributes
static const int	registrar
	Registrar of class to factory. More...

Additional Inherited Members
Public Attributes inherited from OutputTime
Input::AbstractRecord	format_record_

Static Public Attributes inherited from OutputTime
static const unsigned int	N_DISCRETE_SPACES = 3

Protected Types inherited from OutputTime
typedef std::shared_ptr< OutputDataBase >	OutputDataPtr

typedef std::vector< OutputDataPtr >	OutputDataFieldVec

typedef unsigned int	DiscreteSpaceFlags

Protected Member Functions inherited from OutputTime
template<int spacedim, class Value >
void	compute_field_data (DiscreteSpace type, Field< spacedim, Value > &field)

void	fix_main_file_extension (std::string extension)

Protected Attributes inherited from OutputTime
int	rank

OutputDataFieldVec	output_data_vec_ [N_DISCRETE_SPACES]

int	current_step

double	time

double	write_time

std::map< std::string, DiscreteSpaceFlags >	output_names

Input::Record	input_record_

ofstream	_base_file

string	_base_filename

Mesh *	_mesh

Detailed Description

This class is used for output data to VTK file format.

Definition at line 27 of file output_msh.hh.

Member Typedef Documentation

typedef OutputTime OutputMSH::FactoryBaseType

Definition at line 29 of file output_msh.hh.

Constructor & Destructor Documentation

OutputMSH::OutputMSH ( )

The constructor of this class.

OutputMSH::OutputMSH ( const Input::Record & in_rec )

The constructor of this class.

Definition at line 249 of file output_msh.cc.

OutputMSH::~OutputMSH ( )

The destructor of this class.

Definition at line 261 of file output_msh.cc.

Member Function Documentation

void OutputMSH::fix_base_file_name ( void )

private

This method add right suffix to .msh GMSH file.

const Record & OutputMSH::get_input_type ( )

static

The definition of input record for gmsh file format.

Definition at line 29 of file output_msh.cc.

int OutputMSH::write_data ( void )

virtual

This method writes data to GMSH (.msh) file format for current time.

Returns: This function returns 1

Implements OutputTime.

Definition at line 218 of file output_msh.cc.

int OutputMSH::write_head ( void )

This method writes head of GMSH (.msh) file format.

Returns: This function returns 1

Definition at line 202 of file output_msh.cc.

Here is the caller graph for this function:

template<class element >

void OutputMSH::write_msh_ascii_cont_data	(	flow::VectorId< element > &	vec,
		OutputDataPtr	output_data
	)

private

This function writes continuous ascii data to GMSH (.msh) output file.

Parameters

[in] *out_data The pointer at structure storing pointer at own data.

Definition at line 89 of file output_msh.cc.

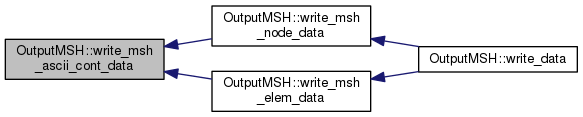

Here is the caller graph for this function:

void OutputMSH::write_msh_ascii_discont_data ( OutputDataPtr output_data )

private

This function writes discontinuous ascii data to GMSH (.msh) output file.

Parameters

[in] *out_data The pointer at structure storing pointer at own data.

Definition at line 105 of file output_msh.cc.

Here is the caller graph for this function:

void OutputMSH::write_msh_elem_data	(	double	time,
		int	step
	)

private

This function write all data on elements to output file. This function is used for static and dynamic data.

Parameters

[in]	time	The time from start
[in]	step	The number of steps from start

Definition at line 175 of file output_msh.cc.

Here is the caller graph for this function:

void OutputMSH::write_msh_geometry ( void )

private

This function writes geometry (position of nodes) to GMSH (.msh) file format.

Definition at line 50 of file output_msh.cc.

Here is the caller graph for this function:

void OutputMSH::write_msh_header ( void )

private

This function write header of GMSH (.msh) file format.

Definition at line 40 of file output_msh.cc.

Here is the caller graph for this function:

void OutputMSH::write_msh_node_data	(	double	time,
		int	step
	)

private

This function write all data on nodes to output file. This function is used for static and dynamic data.

Parameters

[in]	time	The time from start
[in]	step	The number of steps from start

Definition at line 128 of file output_msh.cc.

Here is the caller graph for this function:

void OutputMSH::write_msh_topology ( void )

private

This function writes topology (connection of nodes) to the GMSH (.msh) file format.

Definition at line 64 of file output_msh.cc.

Here is the caller graph for this function:

int OutputMSH::write_tail ( void )

This method should write tail of GMSH (.msh) file format.

It is stupid file format. It doesn't write anything special at the end of the file

Returns: This function returns 1

Definition at line 242 of file output_msh.cc.

Here is the caller graph for this function:

Member Data Documentation

bool OutputMSH::header_written

private

Definition at line 81 of file output_msh.hh.

const int OutputMSH::registrar

staticprivate

Initial value:

= Input::register_class< OutputMSH, const Input::Record & >("gmsh") +

OutputMSH::get_input_type().size()

Registrar of class to factory.

Definition at line 79 of file output_msh.hh.

The documentation for this class was generated from the following files:
