This class is used for output data to VTK file format. More...

#include <output_vtk.hh>

Inheritance diagram for OutputVTK:

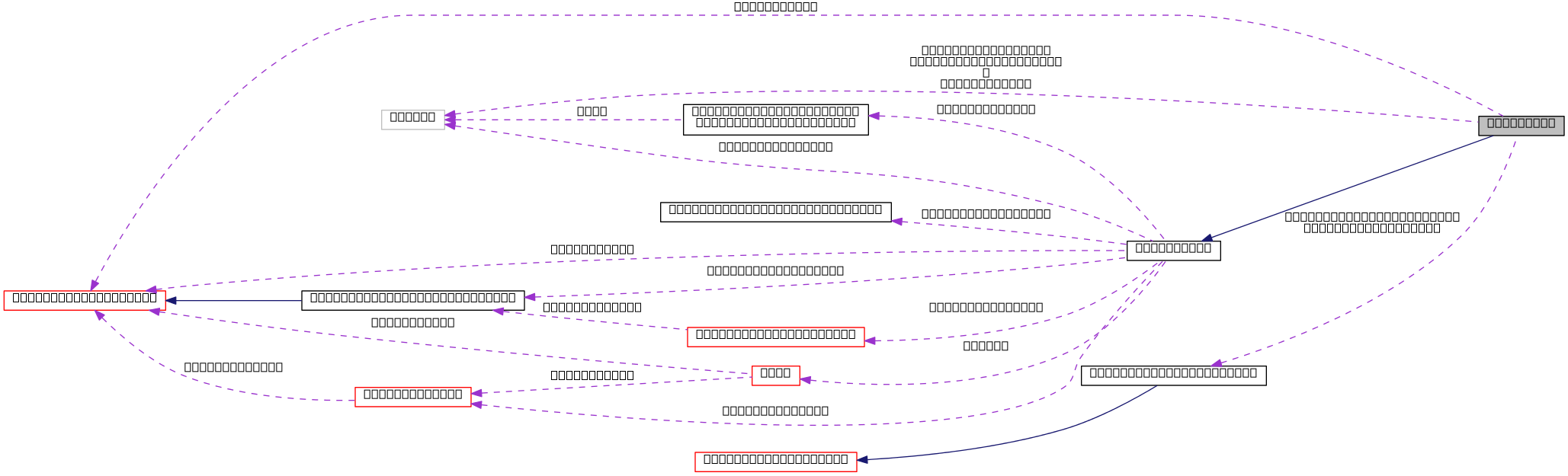

Collaboration diagram for OutputVTK:

Public Member Functions
	OutputVTK (const Input::Record &in_rec)
	The constructor of this class. The head of file is written, when constructor is called. More...

	OutputVTK ()
	The constructor of this class. The head of file is written, when constructor is called. More...

	~OutputVTK ()
	The destructor of this class. It writes tail of the file too. More...

int	write_data (void)
	This function write data to VTK (.pvd) file format for curent time. More...

int	write_head (void)
	This function writes header of VTK (.pvd) file format. More...

int	write_tail (void)
	This function writes tail of VTK (.pvd) file format. More...

Public Member Functions inherited from OutputTime
	OutputTime ()
	Default constructor. Only for testing. More...

	OutputTime (const Input::Record &in_rec)
	Constructor of OutputTime object. It opens base file for writing. More...

virtual	~OutputTime ()
	Destructor of OutputTime. It doesn't do anything, because all necessary destructors will be called in destructor of Output. More...

template<int spacedim, class Value >
void	register_data (const DiscreteSpace type, MultiField< spacedim, Value > &multi_field)
	Generic method for registering output data stored in MultiField. More...

template<int spacedim, class Value >
void	register_data (const DiscreteSpace ref_type, Field< spacedim, Value > &field)
	Generic method for registering of output data stored in Field. More...

void	write_time_frame ()

void	add_admissible_field_names (const Input::Array &in_array)
	Registers names of output fields that can be written using this stream. More...

void	clear_data (void)
	Clear data for output computed by method `compute_field_data`. More...

void	mark_output_times (const TimeGovernor &tg)

	TYPEDEF_ERR_INFO (EI_FieldName, std::string)

	DECLARE_EXCEPTION (ExcOutputVariableVector,<< "Can not output field "<< EI_FieldName::qval<< " returning variable size vectors. Try convert to MultiField.\n")

Static Public Attributes
static Input::Type::Record	input_type
	The definition of input record for vtk file format. More...

static Input::Type::Selection	input_type_variant
	The definition of input record for selection of variant of file format. More...

static Input::Type::Selection	input_type_compression
	The definition of input record for selection of compression type. More...

Static Public Attributes inherited from OutputTime
static Input::Type::Record	input_type
	The specification of output stream. More...

static Input::Type::AbstractRecord	input_format_type
	The specification of output file format. More...

static const unsigned int	N_DISCRETE_SPACES = 3

Protected Types
enum	Variant { VARIANT_ASCII = 1, VARIANT_BINARY = 2 }
	The declaration enumeration used for variant of file VTK format. More...

enum	Compression { COMPRESSION_NONE = 1, COMPRESSION_GZIP = 2 }
	The declaration of enumeration used for type of compression used in file format. More...

enum	VTKElemType { VTK_VERTEX = 1, VTK_POLY_VERTEX = 2, VTK_LINE = 3, VTK_POLY_LINE = 4, VTK_TRIANGLE = 5, VTK_TRIANGLE_STRIP = 6, VTK_POLYGON = 7, VTK_PIXEL = 8, VTK_QUAD = 9, VTK_TETRA = 10, VTK_VOXEL = 11, VTK_HEXAHEDRON = 12, VTK_WEDGE = 13, VTK_PYRAMID = 14, VTK_QUADRIC_EDGE = 21, VTK_QUADRIC_TRIANGLE = 22, VTK_QUADRIC_QUAD = 23, VTK_QUADRIC_TETRA = 24, VTK_QUADRIC_HEXAHEDRON = 25 }

enum	VTKElemSize { VTK_LINE_SIZE = 2, VTK_TRIANGLE_SIZE = 3, VTK_TETRA_SIZE = 4 }

typedef enum OutputVTK::Variant	Variant
	The declaration enumeration used for variant of file VTK format. More...

typedef enum OutputVTK::Compression	Compression
	The declaration of enumeration used for type of compression used in file format. More...

Protected Types inherited from OutputTime
typedef std::shared_ptr< OutputDataBase >	OutputDataPtr

typedef std::vector< OutputDataPtr >	OutputDataFieldVec

typedef unsigned int	DiscreteSpaceFlags

Protected Member Functions
void	write_vtk_vtu_head (void)
	Write header of VTK file (.vtu) More...

void	write_vtk_geometry (void)
	Write geometry (position of nodes) to the VTK file (.vtu) More...

void	write_vtk_topology (void)
	Write topology (connection of nodes) to the VTK file (.vtu) More...

void	write_vtk_discont_geometry (void)
	Write geometry (position of nodes) to the VTK file (.vtu) More...

void	write_vtk_discont_topology (void)
	Write topology (connection of nodes) to the VTK file (.vtu) More...

void	write_vtk_data_ascii (OutputDataFieldVec &output_data_map)

void	write_vtk_data_names (ofstream &file, OutputDataFieldVec &output_data_map)
	Write names of data sets in `output_data` vector that have value type equal to `type`. Output is done into stream `file`. More...

void	write_vtk_node_data (void)
	Write data on nodes to the VTK file (.vtu) More...

void	write_vtk_element_data (void)
	Write data on elements to the VTK file (.vtu) More...

void	write_vtk_vtu_tail (void)
	Write tail of VTK file (.vtu) More...

void	write_vtk_vtu (void)
	This function write all scalar and vector data on nodes and elements to the VTK file (.vtu) More...

void	make_subdirectory ()

Protected Member Functions inherited from OutputTime
template<int spacedim, class Value >
void	compute_field_data (DiscreteSpace type, Field< spacedim, Value > &field)

void	fix_main_file_extension (std::string extension)

Protected Attributes
ofstream	_data_file

string	subdir_name_

string	main_output_basename_

string	main_output_dir_

Protected Attributes inherited from OutputTime
int	rank

OutputDataFieldVec	output_data_vec_ [N_DISCRETE_SPACES]

int	current_step

double	time

double	write_time

std::map< std::string, DiscreteSpaceFlags >	output_names

Input::Record	input_record_

ofstream	_base_file

string	_base_filename

Mesh *	_mesh

Additional Inherited Members
Public Types inherited from OutputTime
enum	DiscreteSpace { NODE_DATA = 0, CORNER_DATA = 1, ELEM_DATA = 2 }

Static Public Member Functions inherited from OutputTime
static OutputTime *	create_output_stream (const Input::Record &in_rec)
	This method delete all object instances of class OutputTime stored in output_streams vector. More...

Public Attributes inherited from OutputTime
Input::AbstractRecord	format_record_

Detailed Description

This class is used for output data to VTK file format.

Definition at line 41 of file output_vtk.hh.

Member Typedef Documentation

typedef enum OutputVTK::Compression OutputVTK::Compression

protected

The declaration of enumeration used for type of compression used in file format.

typedef enum OutputVTK::Variant OutputVTK::Variant

protected

The declaration enumeration used for variant of file VTK format.

Member Enumeration Documentation

enum OutputVTK::Compression

protected

The declaration of enumeration used for type of compression used in file format.

Enumerator
COMPRESSION_NONE
COMPRESSION_GZIP

Definition at line 107 of file output_vtk.hh.

enum OutputVTK::Variant

protected

The declaration enumeration used for variant of file VTK format.

Enumerator
VARIANT_ASCII
VARIANT_BINARY

Definition at line 98 of file output_vtk.hh.

enum OutputVTK::VTKElemSize

protected

Enumerator
VTK_LINE_SIZE
VTK_TRIANGLE_SIZE
VTK_TETRA_SIZE

Definition at line 136 of file output_vtk.hh.

enum OutputVTK::VTKElemType

protected

Enumerator
VTK_VERTEX
VTK_POLY_VERTEX
VTK_LINE
VTK_POLY_LINE
VTK_TRIANGLE
VTK_TRIANGLE_STRIP
VTK_POLYGON
VTK_PIXEL
VTK_QUAD
VTK_TETRA
VTK_VOXEL
VTK_HEXAHEDRON
VTK_WEDGE
VTK_PYRAMID
VTK_QUADRIC_EDGE
VTK_QUADRIC_TRIANGLE
VTK_QUADRIC_QUAD
VTK_QUADRIC_TETRA
VTK_QUADRIC_HEXAHEDRON

Definition at line 113 of file output_vtk.hh.

Constructor & Destructor Documentation

OutputVTK::OutputVTK ( const Input::Record & in_rec )

The constructor of this class. The head of file is written, when constructor is called.

Definition at line 68 of file output_vtk.cc.

OutputVTK::OutputVTK ( )

The constructor of this class. The head of file is written, when constructor is called.

Definition at line 84 of file output_vtk.cc.

OutputVTK::~OutputVTK ( )

The destructor of this class. It writes tail of the file too.

Definition at line 89 of file output_vtk.cc.

Member Function Documentation

void OutputVTK::make_subdirectory ( )

protected

Set appropriate file path substrings. Make subdirectory for VTU time frames.

Definition at line 157 of file output_vtk.cc.

Here is the caller graph for this function:

int OutputVTK::write_data ( void )

virtual

This function write data to VTK (.pvd) file format for curent time.

Implements OutputTime.

Definition at line 97 of file output_vtk.cc.

int OutputVTK::write_head ( void )

This function writes header of VTK (.pvd) file format.

Definition at line 544 of file output_vtk.cc.

Here is the caller graph for this function:

int OutputVTK::write_tail ( void )

This function writes tail of VTK (.pvd) file format.

Definition at line 565 of file output_vtk.cc.

Here is the caller graph for this function:

void OutputVTK::write_vtk_data_ascii ( OutputDataFieldVec & output_data_map )

protected

Write registered data to output stream using ascii format

Definition at line 383 of file output_vtk.cc.

Here is the caller graph for this function:

void OutputVTK::write_vtk_data_names	(	ofstream &	file,
		OutputDataFieldVec &	output_data_map
	)

protected

Write names of data sets in output_data vector that have value type equal to type. Output is done into stream file.

Definition at line 411 of file output_vtk.cc.

Here is the caller graph for this function:

void OutputVTK::write_vtk_discont_geometry ( void )

protected

Write geometry (position of nodes) to the VTK file (.vtu)

This method is used, when discontinuous data are saved to the .vtu file

Definition at line 283 of file output_vtk.cc.

Here is the caller graph for this function:

void OutputVTK::write_vtk_discont_topology ( void )

protected

Write topology (connection of nodes) to the VTK file (.vtu)

This method is used, when discontinuous data are saved to the .vtu file

Definition at line 312 of file output_vtk.cc.

Here is the caller graph for this function:

void OutputVTK::write_vtk_element_data ( void )

protected

Write data on elements to the VTK file (.vtu)

Definition at line 460 of file output_vtk.cc.

Here is the caller graph for this function:

void OutputVTK::write_vtk_geometry ( void )

protected

Write geometry (position of nodes) to the VTK file (.vtu)

Definition at line 185 of file output_vtk.cc.

Here is the caller graph for this function:

void OutputVTK::write_vtk_node_data ( void )

protected

Write data on nodes to the VTK file (.vtu)

Definition at line 433 of file output_vtk.cc.

Here is the caller graph for this function:

void OutputVTK::write_vtk_topology ( void )

protected

Write topology (connection of nodes) to the VTK file (.vtu)

Definition at line 215 of file output_vtk.cc.

Here is the caller graph for this function:

void OutputVTK::write_vtk_vtu ( void )

protected

This function write all scalar and vector data on nodes and elements to the VTK file (.vtu)

Definition at line 489 of file output_vtk.cc.

Here is the caller graph for this function:

void OutputVTK::write_vtk_vtu_head ( void )

protected

Write header of VTK file (.vtu)

Definition at line 174 of file output_vtk.cc.

Here is the caller graph for this function:

void OutputVTK::write_vtk_vtu_tail ( void )

protected

Write tail of VTK file (.vtu)

Definition at line 480 of file output_vtk.cc.

Here is the caller graph for this function:

Member Data Documentation

ofstream OutputVTK::_data_file

protected

Data output stream (could be same as base_file)

Definition at line 214 of file output_vtk.hh.

Record OutputVTK::input_type

static

Initial value:

= Record("vtk", "Parameters of vtk output format.")

    .derive_from(OutputTime::input_format_type)
    .declare_key("variant", input_type_variant, Default("ascii"),
        "Variant of output stream file format.")

    .declare_key("parallel", Bool(), Default("false"),
        "Parallel or serial version of file format.")

    .declare_key("compression", input_type_compression, Default("none"),
        "Compression used in output stream file format.")

The definition of input record for vtk file format.

Definition at line 65 of file output_vtk.hh.

Selection OutputVTK::input_type_compression

static

Initial value:

= Selection("Type of compression of VTK file format")
    .add_value(OutputVTK::COMPRESSION_NONE, "none",
        "Data in VTK file format are not compressed")
    .add_value(OutputVTK::COMPRESSION_GZIP, "zlib",
        "Data in VTK file format are compressed using zlib (not supported yet)")

The definition of input record for selection of compression type.

Definition at line 75 of file output_vtk.hh.

Selection OutputVTK::input_type_variant

static

Initial value:

= Selection("VTK variant (ascii or binary)")
    .add_value(OutputVTK::VARIANT_ASCII, "ascii",
        "ASCII variant of VTK file format")
    .add_value(OutputVTK::VARIANT_BINARY, "binary",
        "Binary variant of VTK file format (not supported yet)")

The definition of input record for selection of variant of file format.

Definition at line 70 of file output_vtk.hh.

string OutputVTK::main_output_basename_

protected

Definition at line 221 of file output_vtk.hh.

string OutputVTK::main_output_dir_

protected

Definition at line 223 of file output_vtk.hh.

string OutputVTK::subdir_name_

protected

Path to time frame VTU data subdirectory

Definition at line 219 of file output_vtk.hh.

The documentation for this class was generated from the following files:

/home/cygwin64/F123-windows-release/flow123d/src/io/output_vtk.hh
/home/cygwin64/F123-windows-release/flow123d/src/io/output_vtk.cc

Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
